Glue gun (packaging application)

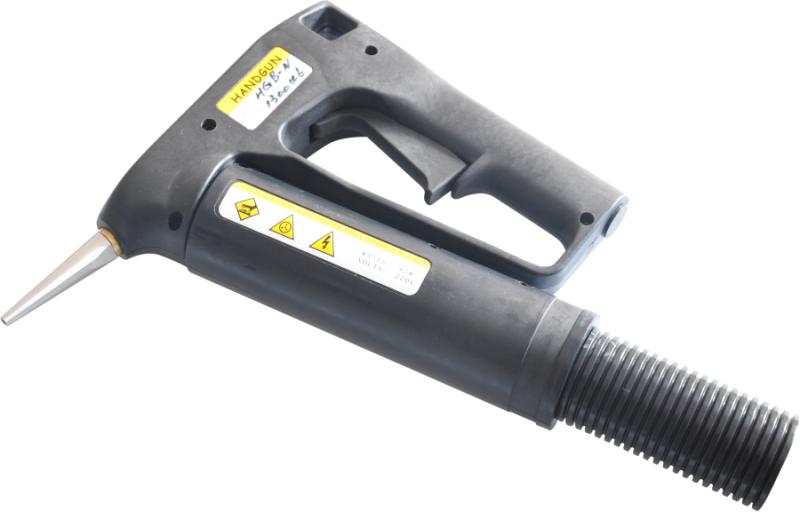

Hand spray gun (linear)

model :WT AD-31

Walter manual spray gun is flexible and applies to simple manual sizing.

features:

Walter manual spray gun characteristics:
◆Manual hands are compact、lightweight hands that offer a wide range of pattern capabilities. These durable s combine efficient design and reliable performance for manually dispensing hot melt adhesives sealanrs and other thermoplastic materials.
◆A 360 swivel connector eliminates hose twisting.
◆RTD sensor offer precise temperature control.
◆Impact-resistant molded shell extends service life.
◆Cool handle for comfortable operation.
◆Operational Temperature:105-230℃; Working Hydraulic Pressure:1200PCS; Electrical Service:220V 50Hz.
◆Spray can was linear, point-like, spiral, mist.
◆Apply to carton (box) packaging, lights, car interior, furniture assembly, air conditioning / refrigerator assembly, non-woven adhesive products, such as cooperation on trade manually.
  • details
  • parameters
Walter manual spray gun:
1 、 flexible operation application, suitable for simple sizing and laminating;
2, can provide 0.2 ~ 2.0MM aperture different specifications of nozzles, solve manual spraying evenly;
3, according to the product requirements, flexibility to adjust the spraying position, widely used in packaging, composite, stickers, etc.;
4, Walter manual spray gun flexible application, apply to simple artificial sizing adhesive.
Ordinal name - model specification parameter value
1 working temperature is 80 to 230 DEG C (160 to 500 degrees Fahrenheit)
2 working frequency 60 times / min
3 hot melt adhesive viscosity 500~30000 pis
4 temperature sensor type PT100, NI120, thermocouple class
5 solenoid valve control pressure 1 ~ 6.5bar, need to use oil removal compressed air
6 solenoid valve control voltage DC 24V
