Hot-melt adhesive pipe

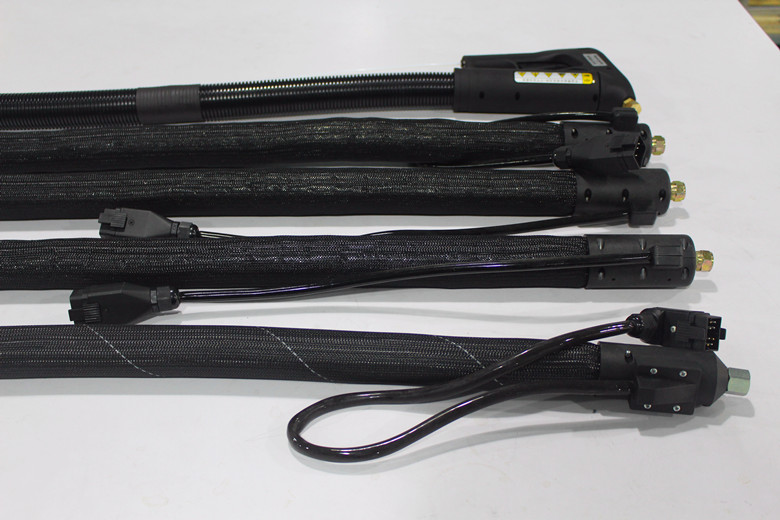

Hot melt hose - install protective sleeve

model :WH-

热熔胶机输胶管也称为输胶软管,配套手动喷枪。 The hose of the hot melt glue machine is also called the rubber hose, and it is equipped with a manual spray gun.

features:

Walter soft hose properties:
Adopts imported Teflon hose core, high temperature resistant anti carbonization and has good flexibility, anti adhesive;
It adopts high quality carbon fiber heating wire (heating wire break), to ensure the excellent quality of the folded rubber hose;
Adopts high quality high-temperature transmission line, with insulation, good stability;
Adopts high quality heat exchanger (optional PT100 and NI120), to ensure uniform thermal conductivity;
Adopts high-quality imported insulation materials, thermal insulation, heat insulation, ensure excellent flame retardant properties;
Adopts automation processing technology innovation, to ensure the excellent quality of the glue dispensing hose flexible folding.
  • details
  • parameters
Walter soft hose properties:
Adopts imported Teflon hose core, high temperature resistant anti carbonization and has good flexibility, anti adhesive;
It adopts high quality carbon fiber heating wire (heating wire break), to ensure the excellent quality of the folded rubber hose;
Adopts high quality high-temperature transmission line, with insulation, good stability;
Adopts high quality heat exchanger (optional PT100 and NI120), to ensure uniform thermal conductivity;
Adopts high-quality imported insulation materials, thermal insulation, heat insulation, ensure excellent flame retardant properties;
Adopts automation processing technology innovation, to ensure the excellent quality of the glue dispensing hose flexible folding.


Ordinal name - model, specification, parameter, value, unit
1 WH- "rubber hose models, 4 to 40 ft (1.2M to 12.2M) ft."
2 internal core Teflon hose core
3, air socket - cable connector type, as shown in the standard, may be required to support other cable joints
4 maximum hydraulic 1500 lb (10.30 MPa) MPa
5 temperature control range of 0 to 240 DEG C (0 to 460 degrees Fahrenheit)
6 temperature range of 0 ~ 50 DEG C (0 to 122 degrees Fahrenheit)
7 temperature sensor type, standard PT100, optional NI120 and thermocouple class
8, material insulation, heat insulation, flame retardant, high temperature resistance, wear-resistant
9 power requirements 220V/50HZ V/HZ
10 maximum power consumption 150W to 1300W WATT
