Glue gun (guard material and coating compound)

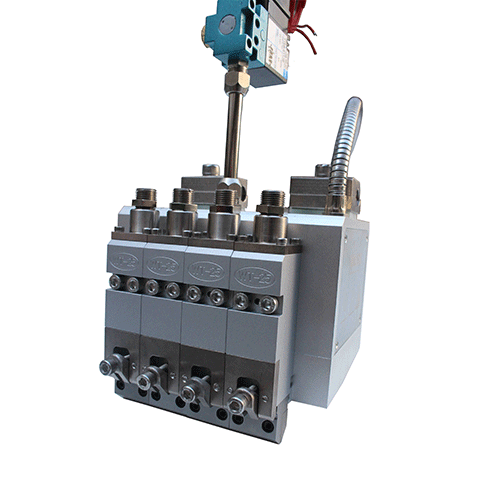

Fiber spray gun

model :WAF100-4M

Fiber spray gun, widely used in non-woven fabric composite, coating, bonding operations.

features:

Characteristics of small screw gun:
1, split type gun body design, novel structure, easy maintenance;
2, spraying low weight, low air pressure control;
3, the low weight of continuous and discontinuous sizing conditions, effectively control the spray size, density and shape, to achieve stronger
The composite properties with composite strength enable the product to have better absorption properties;
4, small spiral spray gun is also referred to as screw gun, is widely used in non-woven fabric composite coating, bonding operations.
  • details
  • parameters
Characteristics of small screw gun:
1, split type gun body design, novel structure, easy maintenance;
2, spraying low weight, low air pressure control;
3, the low weight of continuous and discontinuous sizing conditions, effectively control the spray size, density and shape, to achieve stronger
The composite properties with composite strength enable the product to have better absorption properties;
4, small spiral spray gun is also referred to as screw gun, is widely used in non-woven fabric composite coating, bonding operations.

Ordinal name - model specification parameter value
1 each module (spraying valve) WT25, WT50 compatible 25MM series nozzle
2 working temperature is 80 to 230 DEG C (160 to 500 degrees Fahrenheit)
3 hydraulic pressure 220 to 860psi
4 maximum hydraulic pressure 1280psi
5 temperature sensor type, standard PT100, optional NI120 and thermocouple class
6 solenoid valve control pressure 4 ~ 5.8bar (60psi), need to use oil removal compressed air
7 solenoid valve control voltage DC 24V
