Application of hot melt adhesive spraying equipment to electronic label compound operation

model :WA30L

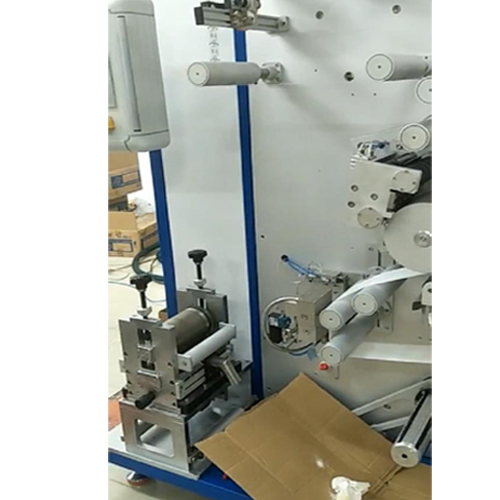

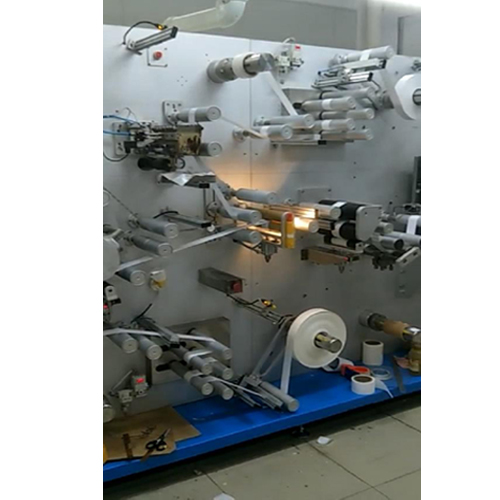

The hot melt adhesive machine is equipped with broken scraping gun, which is applied to the compound operation of electronic label.

features:

Shenzhen Walter hot-melt glue machine is applied to the electronic label industry.
The electronic tag is also called the radio frequency label, the transponder and the data carrier.
As a data carrier, the electronic label can play the role of identification, object tracking and information collection.
Our hot melt machine in the specified materials on frictioning / glue, complete electronic label multilayer material and adhesive sealing operation.
  • details
  • parameters
Shenzhen Walter hot-melt glue machine is applied to the electronic label industry.
The electronic tag is also called the radio frequency label, the transponder and the data carrier.
As a data carrier, the electronic label can play the role of identification, object tracking and information collection.

Our hot melt machine in the specified materials on frictioning / glue, complete electronic label multilayer material and adhesive sealing operation.

Ordinal name - model specification parameter value
1 each module (spraying valve) WT25, WT50 compatible 25MM series nozzle
2 working temperature is 80 to 230 DEG C (160 to 500 degrees Fahrenheit)
3 hydraulic pressure 220 to 860psi
4 maximum hydraulic pressure 1280psi
5 temperature sensor type, standard PT100, optional NI120 and thermocouple class
6 solenoid valve control pressure 4 ~ 6.5bar (60psi), need to use oil removal compressed air
7 solenoid valve control voltage DC 24V
